They are placed on welding drawings by welding engineers and their purpose is to relay information to the welder.

Welding symbols worksheet. For example below is a welding symbol of a double bevel groove weld. Spacer This symbol indicates the type and the dimension of the spacer that is inserted between the welded pieces. List and describe current characteristics of the field of welding.

When a weld is to be applied to only one side of a joint it will be called a single groove weld. An Explanation of the Basic Welding Symbols With Charts - Google Docs. Take the class to a business where welding is a primary service offered.

Every weld symbol must consist of an arrow and a reference line. A reference line 3. All single groove welds should be considered complete joint penetration CJP unless otherwise specified.

The only required elements of a welding symbol are the A. Arrow and weld symbol B. Name Double sided V butt Double sided bevel butt Double sided U butt weld Symbol.

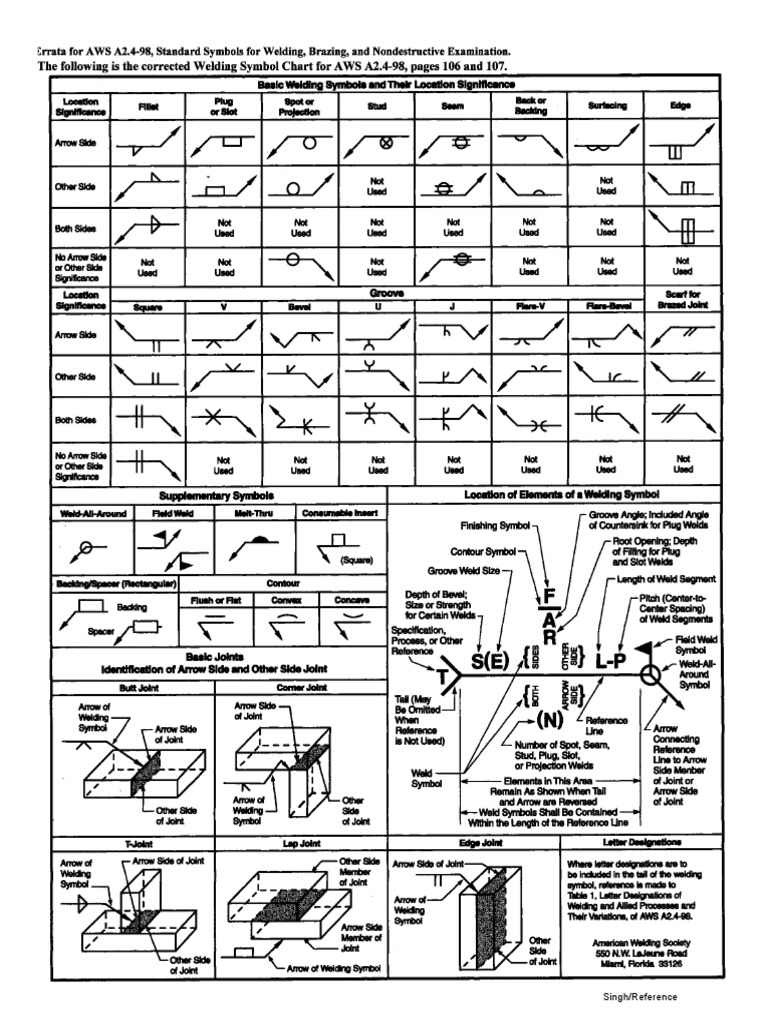

Arrow side lap weld d. Flag symbol Field weldMade on site. Common weld symbols and their meanings When welds are specified on engineering and fabrication drawings a cryptic set of symbols is used as a sort of shorthand for describing the type of weld its size and other processing and finishing information.

If a weld is to be applied to both sides of the joint this is called a double groove weld. The arrow may point up or down. Single V groove weld b.

Other side lap weld. Length Depth of penetration Height of reinforcement Groove type Groove dimensions. Z a.

If you have a questions please let us know by replying to the post. A7 10 x 300 200 a z. T BM thickness Circumferential weld Field weld.

A welding symbol for a fillet weld includes the required fillet weld symbol and as needed the size length pitch contour method of making the contour weld all around field weld and any other supplemental information listed in the tail of the welding symbol. The size of the fillet weld is shown to the left of the weld symbol. Welding symbols allow the engineer or draftsperson to communicate detailed information about the weld to the welder.

Identify the following welding symbol below. Here we will introduce you to the common symbols and their meaning. A - size Z weld sign n number of welds L - length e distance Z intermittent weld T technology information.

Note what is different and what each one means. For example below is a welding symbol of a single V-Groove weld on the other side. It indicates length of weld.

Welding symbols like sign posts are informational directors. This is just barely skimming the surface of weld symbols training. Other side fillet weld c.

Give them copies of the worksheet so they can complete them during the visit. Welding symbols are used on blueprints and drawings to show where the weld is to be placed and may Read More. It is the distance between two consecutive welds measured from the center of both welds.

Arrow side fillet weld b. Contour These symbols designate the final weld end product contour. Examine the examples below which show the weld required and the symbol that conveys this information.

Students will reinforce apply and transfer knowledge and skills to a. Weld symbols on the dashed line relates to weld on the far side. Welding Symbols The use of welding symbols enables a designer to indicate clearly to the welder important detailed information regarding the weldment.

Compare these two symbols. Some of the worksheets for this concept are Learning objective key terms Blue reading esstentials in welding Lesson plans for module 29201 15 welding symbols Hands on reading for welders Introduction to welding Math on metal Welding handbook. A7 10 x 300 200 111 SN EN 05 0705 C SN 5817 PC SN EN ISO 6947 OK 1251.

Square butt Square V butt Square V butt with broad root face Single bevel butt Single bevel butt with broad root face Single U butt Single J butt Symbol. Dimensions and reference line C. When identification of the weld process is required as part of the weld symbol the relevant weld process code is listed in BS EN ISO 4063.

Fimish symbols and arrow D reference line and arrow graphic assembly of A. Identify the following welding symbol below. This course supports integration of academic and technical knowledge and skills.

An arrow line 2. Single V arrow side groove weld d. Weld symbols on the full reference line relates to welds on the near side of the plate being welded.

Welding Symbols Displaying top 8 worksheets found for - Welding Symbols. 2 a 05-07t. Double V groove weld c.

Related WorksiteWork Based Activities. Weld all around It signals that the weld is to be made over the entire circumference. It indicates the welding or cutting process along with welding specification procedures or supplementary information related to the weld.

The 9 steps below represent a very basic introduction to welding symbols. Basic Weld Symbol The weld symbol always includes 1. As soon as possible review the answers as a class.

In many instances the information relayed is very simple. The information in the welding symbol can include the following details for the weld. Welding symbols are used on blueprints and drawings to show where the weld is to be placed and may also show the size type of weld number of welds.
